Technical Specifications

Brand	DELL

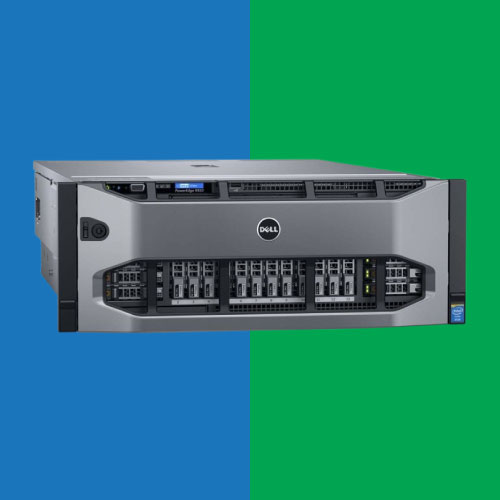

Server Model	PowerEdge R930
Form Factor	4U
Processor Models	Intel Xeon E7-8800 v4 and E7-4800 v4 processors
No of Processors sockets	4
Cores	up to 24 cores per processor
Ram Type	DDR4
Support RAM’s	8GB/16GB/32GB/64GB/128GB DDR4,
Max Memory	12TB
Total Memory Slots	96 DIMM’s
Supported Hard drives	Up to 24 2.5" hot-plug 12Gb/6Gb SAS HDD or SAS/SATA SSD Up to 8 front-accessible Express Flash NVMe PCIe SSD (PCIe 3.0)
Supported RAID Controller’s	Internal controllers: PERC H330, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA
Power supply	Hot-plug redundant: 750W AC, 1100W AC
Operating System	Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux VMware vSphere ESXi
