Technical Specifications

Brand	Cisco

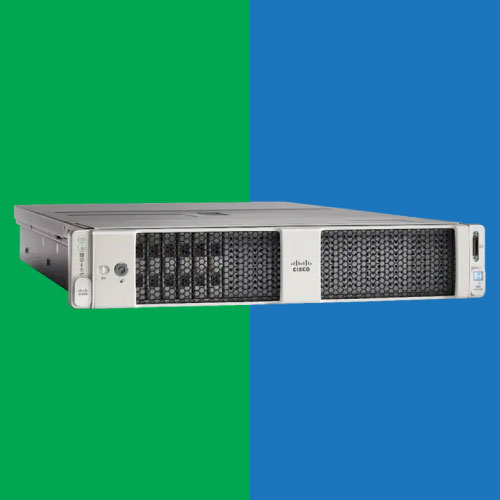

Server Model	UCS C240 M5
Form Factor	2U Rack
Processor Models	Intel First and Second-generation Xeon Scalable Processors
No of Processors	2
Max Cores	56 Cores
Ram Type	DDR4
Support RAM’s	8GB, 16GB, 32GB, 64GB, and 128 GB
Max Memory	9TB of memory is possible (using 12 x 256 GB DDR4 DIMMs and 12 x 512 GB PMem)
Total Memory Slots	24 DIMM’s
Graphics Card	Matrox G200e video/graphics controller Integrated 2D graphics core with hardware acceleration
Hard drives(hot-plug)	Up to 26 x 2.5-inch, SAS and SATA HDDs and SSDs and up to 4 NVMe PCIe drives, Up to 10 x 2.5-inch NVMe PCIe and 16 SAS and SATA HDDs and SSDs, Up to 12 x 3.5-inch SAS and SATA HDDs and SSDs, and 2 rear 2.5-inch HDDs and SSDs and up to 4 NVMe PCIe drives
Operating System	Windows Operating System Linux Server VMware Server
PCI slots	6 PCIe 3.0 slots
RAID controller	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60
Power supply	Redundant 770W AC, 1050W AC, and 1600W AC
